Splicing Mechanism
Parallel Roll-Threading technology. The straight-thread profile guarantees uniform load distribution and full structural cross-section engagement under both tension and compression.
Ultimate Splicing System

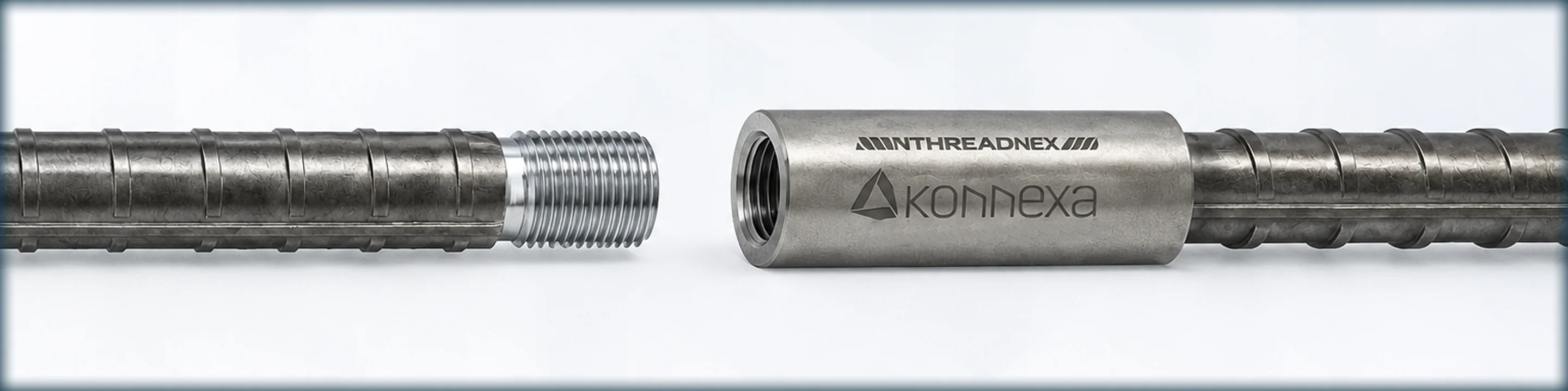

Konnexa Thread NEX Coupler Series
The Konnexa Thread NEX Coupler Series represents the next generation of high-performance mechanical splicing systems. Engineered to eliminate the inefficiencies of traditional lap splicing and complex welding, Thread NEX utilizes a high-precision, roll-threaded parallel design to deliver structural continuity that meets or exceeds the ultimate tensile strength (UTS) of the parent rebar.
Designed to comply with applicable national and international standards, ThreadNEX™ eliminates the need for lap splicing — reducing steel consumption, reinforcement congestion, and installation time while maintaining structural continuity.
The Konnexa advantage - Switching from traditional lapping to the Konnexa Series typically delivers a 15-20% reduction in total steel consumption while significantly shortening structural installation timelines.
Engineering
Technical Specifications & Core Features
Material Grade
Fabricated from high-tensile structural steel (structural carbon / alloy grades such as EN8D), providing extreme resistance to high-cyclic fatigue and seismic shifts.
Size Versatility
Engineered to accommodate a wide diameter spectrum, spanning standard bars from 16 mm to 40 mm.
Load Integrity
Full-performance splicing (Type 2 compliant) ensuring independent load transfer that remains completely unaffected by the surrounding concrete grade.
Congestion Elimination
Sleek, compact profile removes rebar bottlenecks, directly maximizing space and allowing seamless concrete pouring and vibration.
Traceability
100% batch traceability with unique product ID, backed by Mill Test Certificates and NABL-accredited lab reports.
Key Features
Precision in.
Performance out.
ThreadNEX™ pairs advanced cold-forging with precision-engineered parallel threads so the finished splice is not merely as strong as the reinforcement bar — it is stronger, and provably so.
Precision & Threading

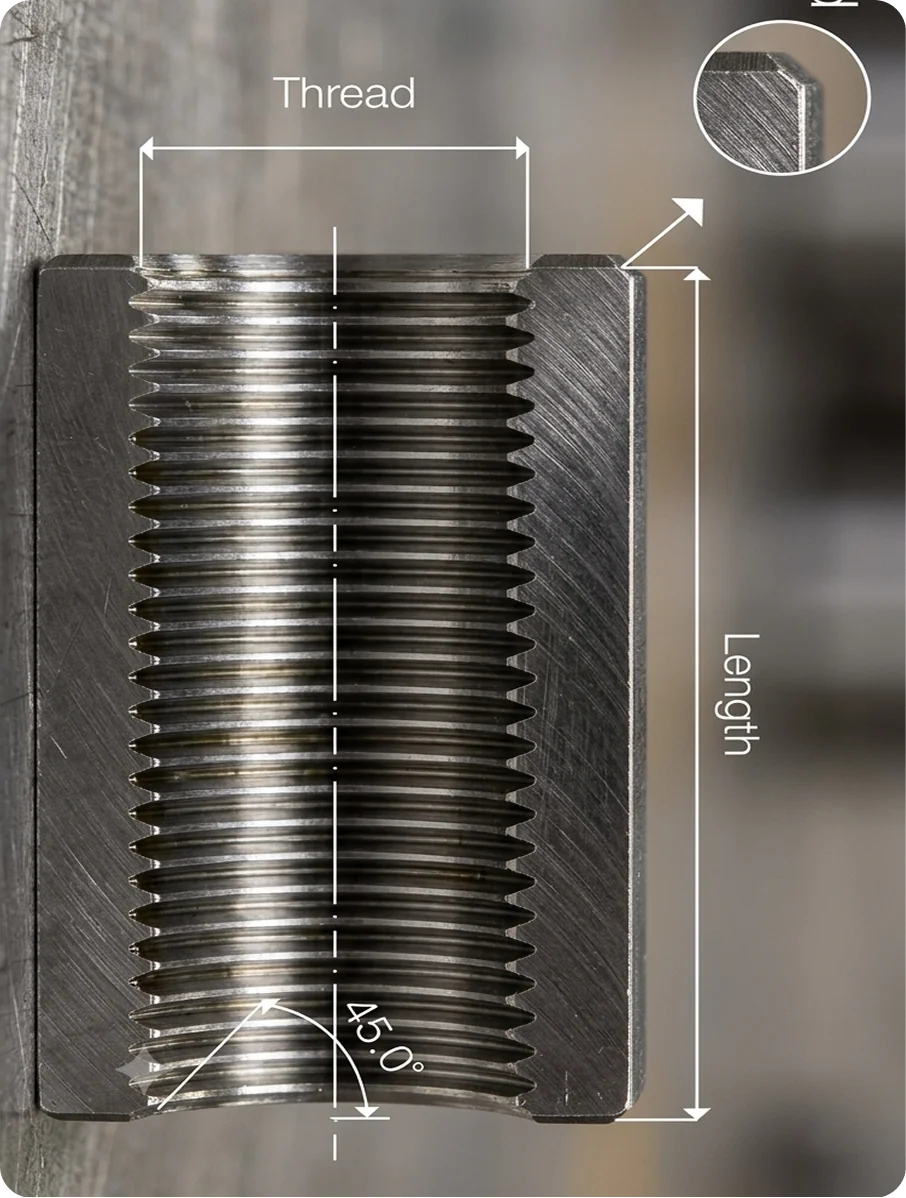

Precision parallel threads for accurate bar alignment- High-quality steel with controlled machining tolerances
- Roll-threaded profile = uniform load distribution
- Sleek compact sleeve clears rebar congestion
Load & Fatigue
- Full-strength splice with reliable load transfer
- Rated for tension, compression & cyclic loading
- Extreme high-cyclic fatigue & seismic resistance
- Type-2 performance, concrete-grade independent
Quality & Compliance
- IS 16172 · ISO 15835 · ACI · ASTM · EC2
- 100% batch traceability, unique product ID
- Mill Test Certificates + NABL-accredited reports
- Engineered for long-term durability & safety
Compliance
Standards & Compliance
ThreadNEX™ is engineered to satisfy the performance requirements of leading international standards, including:
IS 16172
Mechanical Splices for Reinforcing Bars (India)
ISO 15835
Mechanical Splices for Reinforcing Steel (International)
ACI 318 & ACI 439
Mechanical Splice Requirements (USA)
ASTM A1034 / A1034M
Standard Specification for Mechanical Splices for Steel Reinforcing Bars (USA)
EN 1992-1-1 (Eurocode 2)
Design of Concrete Structures (Europe)
IS 1786 / A615 / A706 / BS 4449
Compatible Reinforcement Bar Standards
ThreadNEX™ is compatible with reinforcing bars manufactured to IS 1786, ASTM A615/A706, and BS 4449, subject to project specifications and qualification testing.
Bar Preparation Sequence
Three Steps to a Full-Strength Splice
A single threading machine and a single operator are all that is required for rebar preparation — peeling and rolling performed in sequence, directly on site.

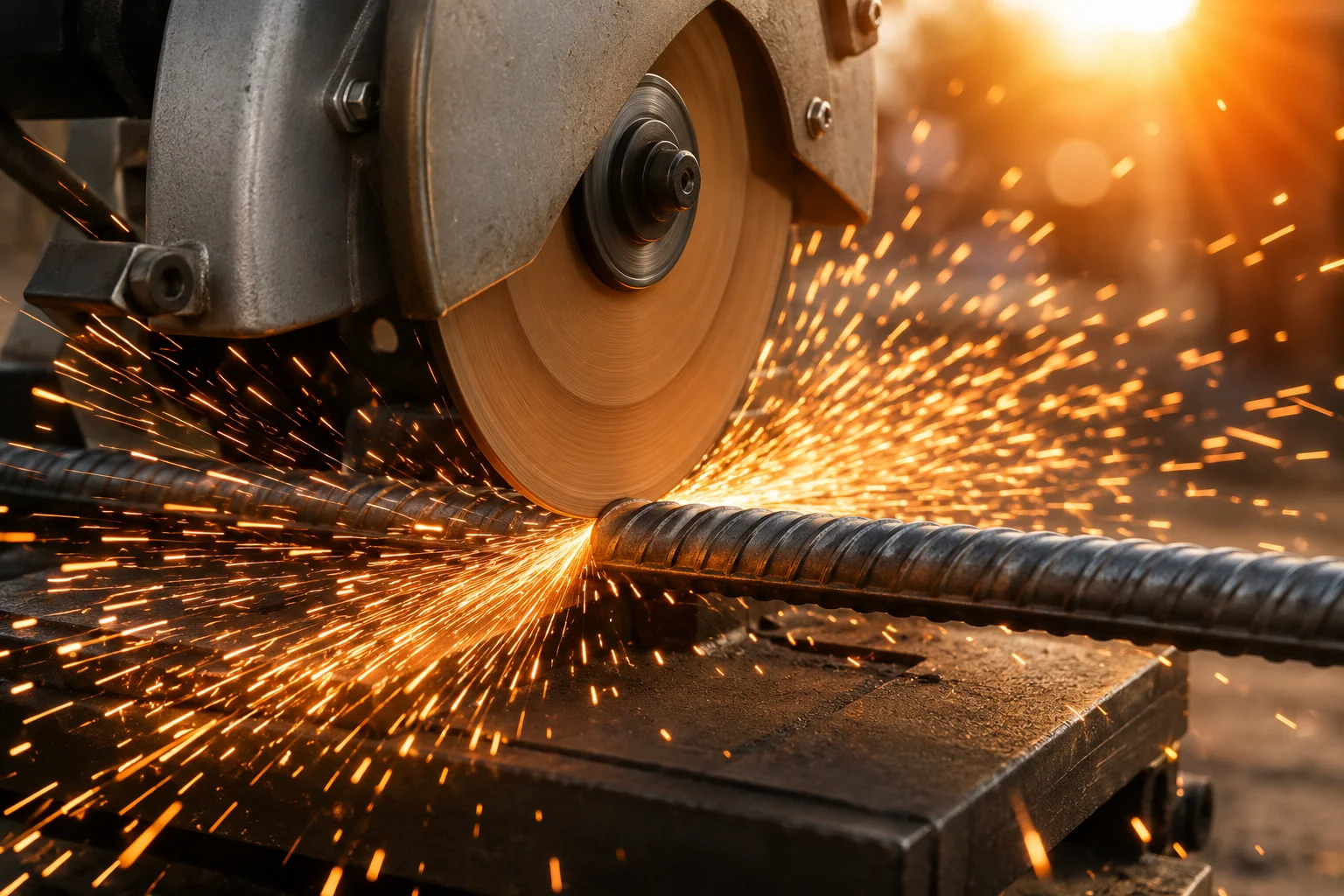

Bar-End Preparation
The end of the reinforcing bar is precisely squared and peeled to a controlled diameter — preparing a clean, uniform surface for threading.
Peeling
The ThreadNEX™ sleeve is threaded onto both prepared bar ends and tightened with calibrated torque — completing a full-strength mechanical splice in seconds.

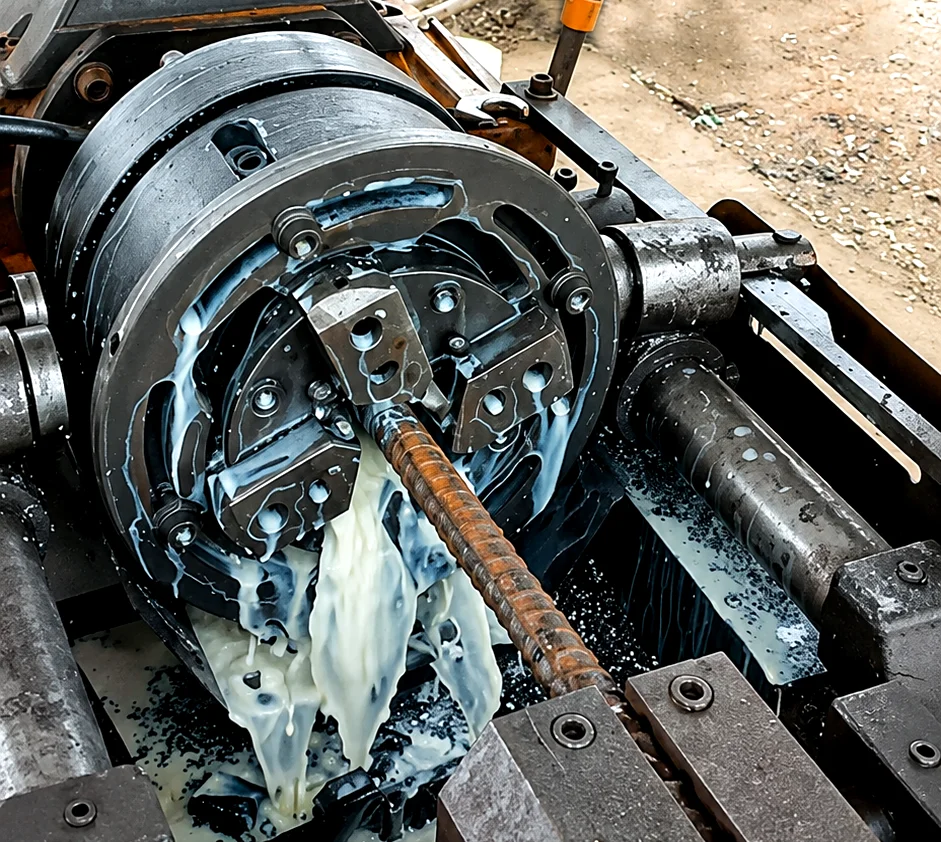

Cold Roll-Threading
The peeled end of the reinforcing bar is then threaded by cold rolling. No parent material is cut away — grain flow is preserved, so the bar keeps its full strength.

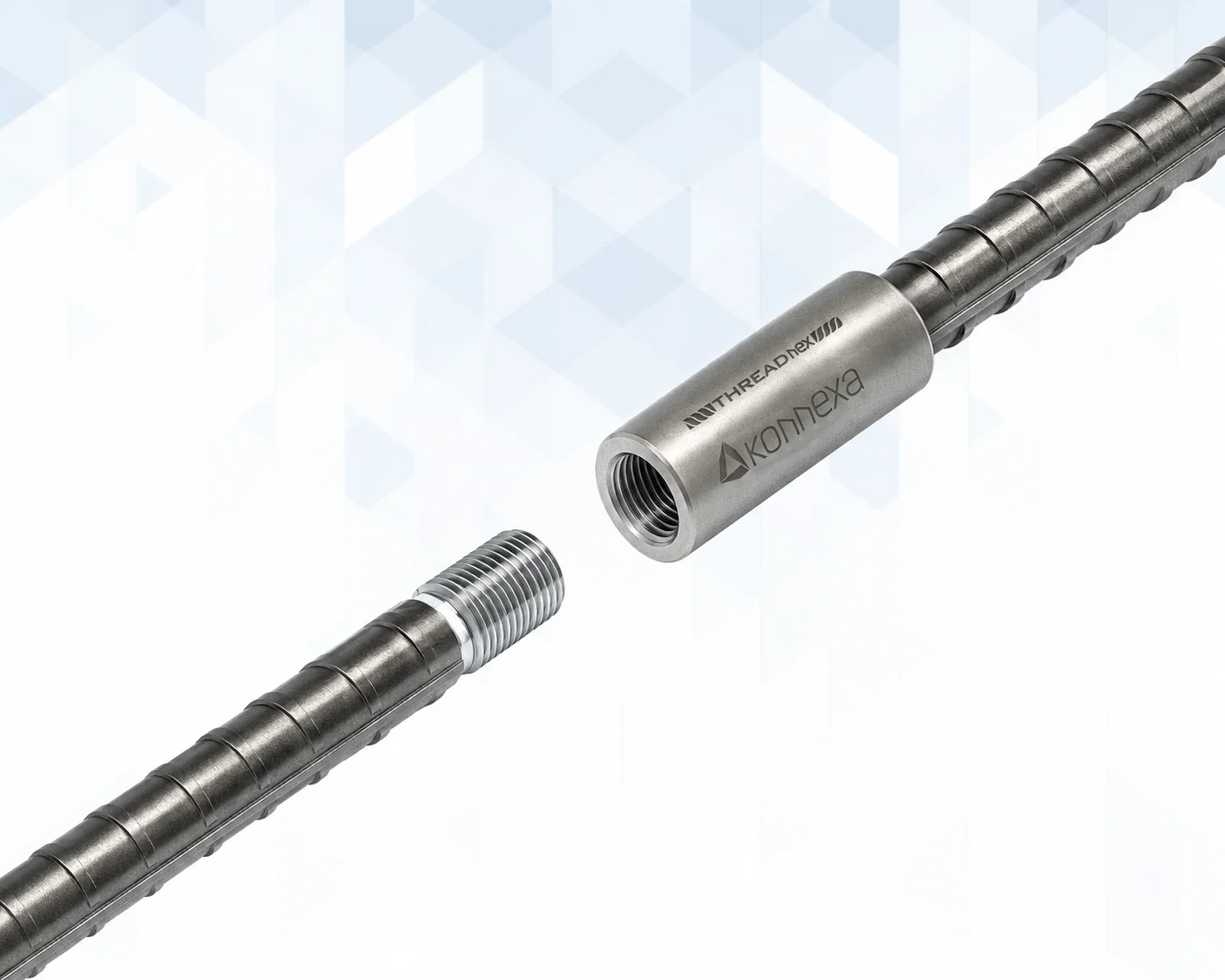

Coupler Engagement
The ThreadNEX™ sleeve is threaded onto both prepared bar ends and tightened with calibrated torque — completing a full-strength mechanical splice in seconds.
Why ThreadNEX
The ThreadNEX™ Solution
ThreadNEX™ eliminates the limitations of traditional splicing by establishing a true mechanical splice that guarantees structural continuity. By combining advanced cold forging technology with precision-engineered parallel threads, ThreadNEX™ ensures that the splice is actually stronger than the reinforcement bar itself.
ThreadNEX™ — Engineered Connections. Stronger Structures.
Applications
From skylines to seabeds, Threadnex™ holds it together.
Designed for demanding projects where a mechanical splice must perform as reliably as the parent bar itself.
Residential & Commercial
High-Rise Towers
Elevated Corridors
Bridges & Flyovers
Underground Structures
Metro & Tunnels
Critical Infrastructure
Precast Structures
- Industrial plants and power generation facilities
- Dams, water treatment & water-retaining structures
- Marine and port infrastructure
- Seismic-resistant reinforced concrete structures
Why threadnex™
Where safety and code compliance are
non-negotiable.
ThreadNEX™ eliminates the limitations of traditional splicing by establishing a true mechanical splice that guarantees structural continuity. By combining advanced cold-forging technology with precision-engineered parallel threads, it ensures the splice is actually stronger than the reinforcement bar itself.
- Establishes a true mechanical splice with full structural continuity
- Parallel threads + cold-forging make the joint stronger than the bar
- Load transfer independent of concrete grade — genuine Type-2 behaviour
- 100% traceable, MTC + NABL-accredited, code-compliant by design
Safety
Economy
Decongestion
Traceability
Cast-In-Place Solutions
Explore other NEX mechanical splicing systems
Expertise
Design
Engineering precision, structural performance, and manufacturability. Our rebar coupler systems use advanced CAD/CAM design, precision CNC machining, and rigorous validation for optimum load transfer and durability.
Global Code Compliance
Strictly engineered to meet IS 16172 & IS 13920 (Indian Standards), ACI 318 & ASTM A1034 (American Standards), and EN 1992-1-1 Eurocode 2. Guaranteed compliance for high-ductility seismic detailing.
Network
Engineering excellence with customer-focused solutions. From individual home builders to large infrastructure projects, our products deliver superior strength, precision, and ease of installation with dedicated technical support.
Service
Sales & After-Sales Support with seamless execution from consultation to handover. Expert advice, on-site technical training, machinery support, and 24-hour on-site assistance for complete peace of mind.
Manufacturing Excellence
Advanced CNC machinery, premium-grade raw materials, and stringent quality control. Automated high-precision roll-threading and forging with micro-level tolerance accuracy across Thread X, Forge X, and Tapper X product lines.
Quality Control
Complete transparency with unique batch traceability. Mill Test Certificates for raw material verification, NABL-accredited laboratory testing, and independent validation ensuring bar-break performance and compliance.
The Quality & Safety Manifesto
Rigorous testing. Independent verification. Absolute traceability. Engineered to exceed every regulatory and safety threshold mandated by Indian and global statutory bodies.
