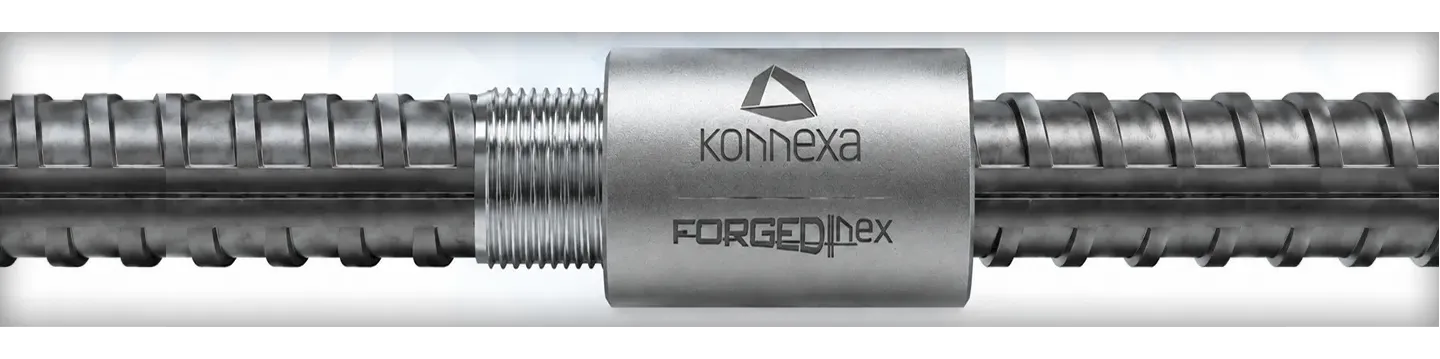

ForgedNEX cold-forged threaded rebar coupler system

Konnexa Forged NEX Coupler Series

ForgedNEX™ is Konnexa's premium cold-forged threaded rebar coupler system, designed to deliver a full-strength mechanical splice for reinforced concrete construction. The reinforcing bar ends are cold forged prior to threading — increasing the effective bar diameter and preserving the parent bar's core cross-sectional area.

This process enhances thread integrity, optimizes load transfer, and ensures superior tensile, compression, and fatigue performance under the most demanding structural conditions.

Applications Examples

View all example

The Konnexa advantage - Switching from traditional lapping to the Konnexa Series typically delivers a 15-20% reduction in total steel consumption while significantly shortening structural installation timelines.

Technical Specifications

Core features engineered for extreme performance

Parallel Profile

Increases local grain density via cold-working, preserving 100% of the parent rebar's nominal cross-section.

Zero-Slip Engineering

Delivers ultra-low slip metrics (< 0.1 mm residual movement), optimizing immediate load transfer under working loads.

Cyclic Endurance

Safely withstands high-cycle elastic fatigue and low-cycle reverse-plastic loading — fail-safe seismic performance.

Bar Compatibility

Engineered for high-yield reinforcement bars — Fe 550D, Fe 600, Grade 75/80 — from 16 mm to 40 mm diameters.

Material Grade

Fabricated from high-tensile structural steel (EN8D / equivalent carbon-alloy grades) for extreme fatigue resistance.

Full Traceability

100% traceable through unique batch & product identification, supported by MTC and NABL-accredited test reports.

Key Features

Built to outperform.
Engineered to endure.

ForgeNEX™ combines cold-forging science with precision machining to deliver a splice that behaves as a monolithic bar under every loading condition.

Structural Performance

Cold-forged bar ends preserve parent bar strength before threading
Full-strength mechanical splice for maximum structural performance
Superior tensile, compressive, and fatigue load resistance
Enhanced load transfer with minimal stress concentration

Engineering & Installation

Precision rolled threads ensure secure and accurate engagement
Faster installation with consistent and reliable performance
Eliminates lap splicing — reduces steel consumption & congestion
Suitable for high-strength reinforcement bars

Quality & Compliance

Supported by Mill Test Certificates (MTC) and NABL-accredited reports
100% traceable through unique batch and product identification
Excellent performance under seismic and cyclic loading
Designed where strength, durability & reliability are paramount

Compliance

Certified to the world's most rigorous structural codes.

ForgeNEX™ is engineered to meet — and exceed — the performance requirements of internationally recognized standards.

IS 16172

Mechanical Splices for Reinforcing Bars

ISO 15835

Mechanical Splices for Reinforcing Steel

ACI 318 & ACI 439

Mechanical Splice Requirements

ASTM A1034 / A1034M

Standard Specification for Mechanical Splices for Steel Reinforcing Bars

EN 1992-1-1 (Eurocode 2)

Design of Concrete Structures

IS 1786 / A615 / A706 / BS 4449

Compatible Reinforcement Bar Standards

ForgedNEX™ is compatible with reinforcing bars manufactured to IS 1786, ASTM A615/A706, and BS 4449, subject to project specifications and qualification testing.

Bar Preparation Sequence

Three Steps to a Full-Strength Splice

A single threading machine and a single operator are all that is required for rebar preparation — peeling, forging, and rolling performed in sequence, directly on site.

Bar-End Preparation

The end of the reinforcing bar is precisely squared and peeled to a controlled diameter — preparing a clean, uniform surface for threading.

Forge

Bar ends are cold forged prior to threading — increasing the effective bar diameter and preserving the parent bar's core cross-sectional area.

Cold Roll-Threading

The peeled end of the reinforcing bar is then threaded by cold rolling. No parent material is cut away — grain flow is preserved, so the bar keeps its full strength.

Coupler Engagement

The ForgedNEX™ sleeve is threaded onto both prepared bar ends and tightened with calibrated torque — completing a full-strength mechanical splice in seconds.

The ForgedNEX™ Solution

ForgedNEX™ combines advanced cold forging technology with precision engineering to deliver a mechanical splice that meets the highest standards of structural performance, quality, and reliability. Designed for modern infrastructure, it offers engineers and contractors a dependable solution where safety, durability, and code compliance are paramount.

STEP-1

STEP-2

STEP-3

Coupler engagement with calibrated torque

Applications

From skylines to seabeds, ForgeNEX™ holds it together.

Designed for demanding projects where a mechanical splice must perform as reliably as the parent bar itself.

Residential & Commercial

High-Rise Towers

Elevated Corridors

Bridges & Flyovers

Underground Structures

Metro & Tunnels

Critical Infrastructure

Precast Structures

Industrial plants and power generation facilities
Marine and port infrastructure
Dams, water treatment & water-retaining structures
Seismic-resistant reinforced concrete structures

Why ForgeNEX™

Where safety and code compliance are
non-negotiable.

ForgeNEX™ combines advanced cold-forging technology with precision engineering to deliver a mechanical splice that meets the highest standards of structural performance, quality, and reliability. Designed for modern infrastructure, it offers engineers and contractors a dependable solution where safety, durability, and code compliance are paramount.
